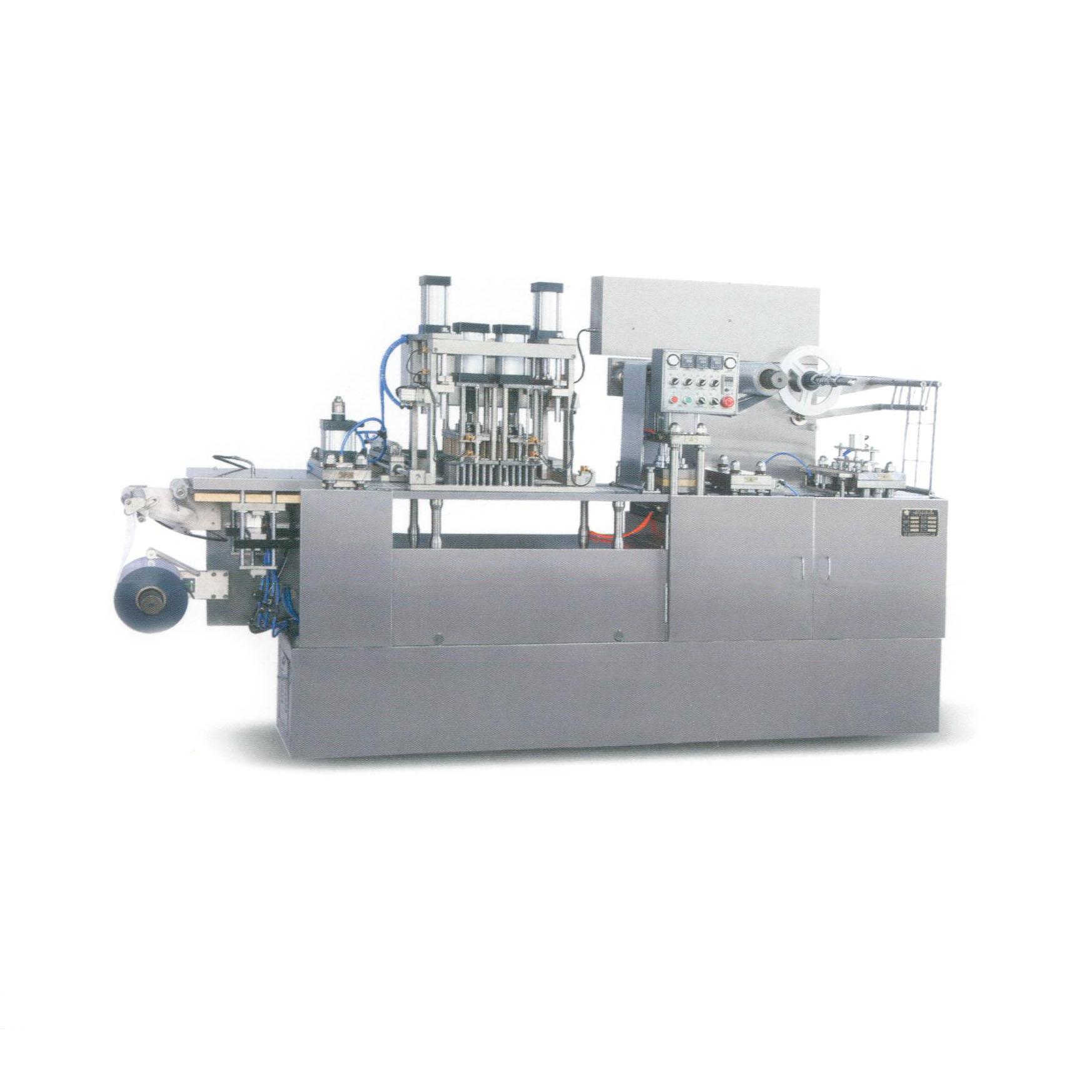

Home » Products » Blister Packing Machine » DPP-88 小型鋁塑包裝機
采用國內新型的大功率傳動機構,由排鏈帶動主傳動軸,免除了其它齒輪傳動的誤差和噪音
1、采用國內新型的大功率傳動機構,由排鏈帶動主傳動軸,免除了其它齒輪傳動的誤差和噪音。
2、電器采用進口控制系統,便可按照客戶要求,配置缺料漏補裝置和缺粒檢測剔除裝置。
3、整機采用分段組合:PVC成形、加料、熱封為一段,熱帶鋁冷成形、熱封、沖裁為一段可進行分體包裝。
4、采用光電控制系統,PVC、PTP、硬鋁包裝自動送料、廢邊自動沖切裝置,確保超長距離多工位同步穩定性。
5、可另配光電檢測校正裝置,配進口步進電機牽引,圖文對版印刷包裝,優化包裝物檔次。
6、本機適用:膠囊、素片、糖衣、膠丸、針劑、異形等以及醫療器、輕化食品、電子元件泡罩密封包裝。
主要技術參數:
型號: DPP-88
沖切次數: 15-40Punches/min
沖切板數: 1sheets(根據客戶尺寸)
產量: 900-2100sheets/hour(根據客戶尺寸)
可調行程: 10-120mm
最大成型面積: 80*120*15mm
電源: 380V 50Hz 5.5Kw
包材尺寸: PVC: 80×(0.15-0.5)mm PTP: 88*(0.02*0.035) mm
機器尺寸: 1950*500*1100mm
機器包裝尺寸: 2100*650*1250mm
重量: 650Kg
