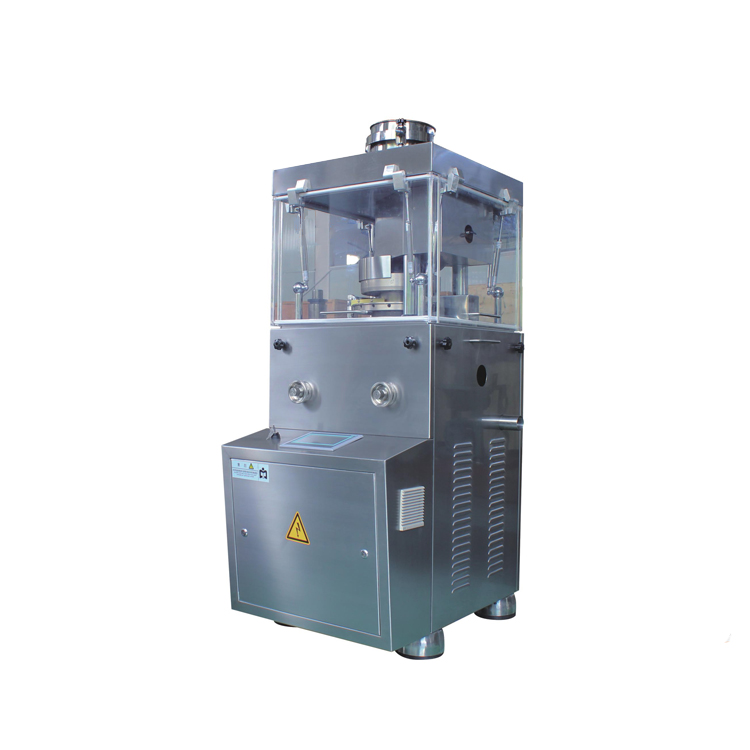

This machine is a single-press type, continuous automatic tablet press for pressing granular raw materi-
als into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic
and metallurgical industries.
This machine is a single-press type, continuous automatic tablet press for pressing granular raw materi-
als into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic
and metallurgical industries.
Characteristics
The outside part of the machine is fully-enclosed, and it is made of stainless steel, meeting the G.M.P requirement.
It has transparent windows so that press condition can be observed clearly and the windows can be opened. Cleaning and maintenance is easier.
The machi ne can press not only round tablets but also d if fere nt geometrical shape tablets,
double-layered and annular tablets, the tablets may have the impressed letters on both sides.
All the controller and devices are located in one side of the machine, so that it can be easier to operate.
A overload protection unit is in eluded in the system to avoid the damage of the punches and apparatus, when overload occurs.
The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, prevent cross pollution.
Technical parameters
|
參數(shù) |
Data |
ZPT226Di-17Di |
||
|
沖模數(shù) |
Dies (sets) |
17 |
19 |
21 |
|
工作壓力 |
Max. Pressure (kn) |
60 |
60 |
60 |
|
最大片徑 |
Max. Dia of Tablet (mm) |
20 |
12 |
11 |
|
充填深度 |
Max. Depth of Fill (mm) |
15 |
15 |
15 |
|
壓片厚度 |
Max. Thickness of Tablet (mm) |
6 |
6 |
6 |
|
產(chǎn) 量 |
Max. Production Capacity (pc/h) |
40000 |
45600 |
50000 |
|
電 壓 |
Voltage (v/hz) |
380 |
380 |
380 |
|
功 率 |
Motor Power (kw) |
3 |
3 |
3 |
|
尺 寸 |
Overall Size (mm) |
615x890x1415 |
615x890x1415 |
615x890x1415 |
|
重 量 |
Weight (kg) |
850 |
850 |
850 |
