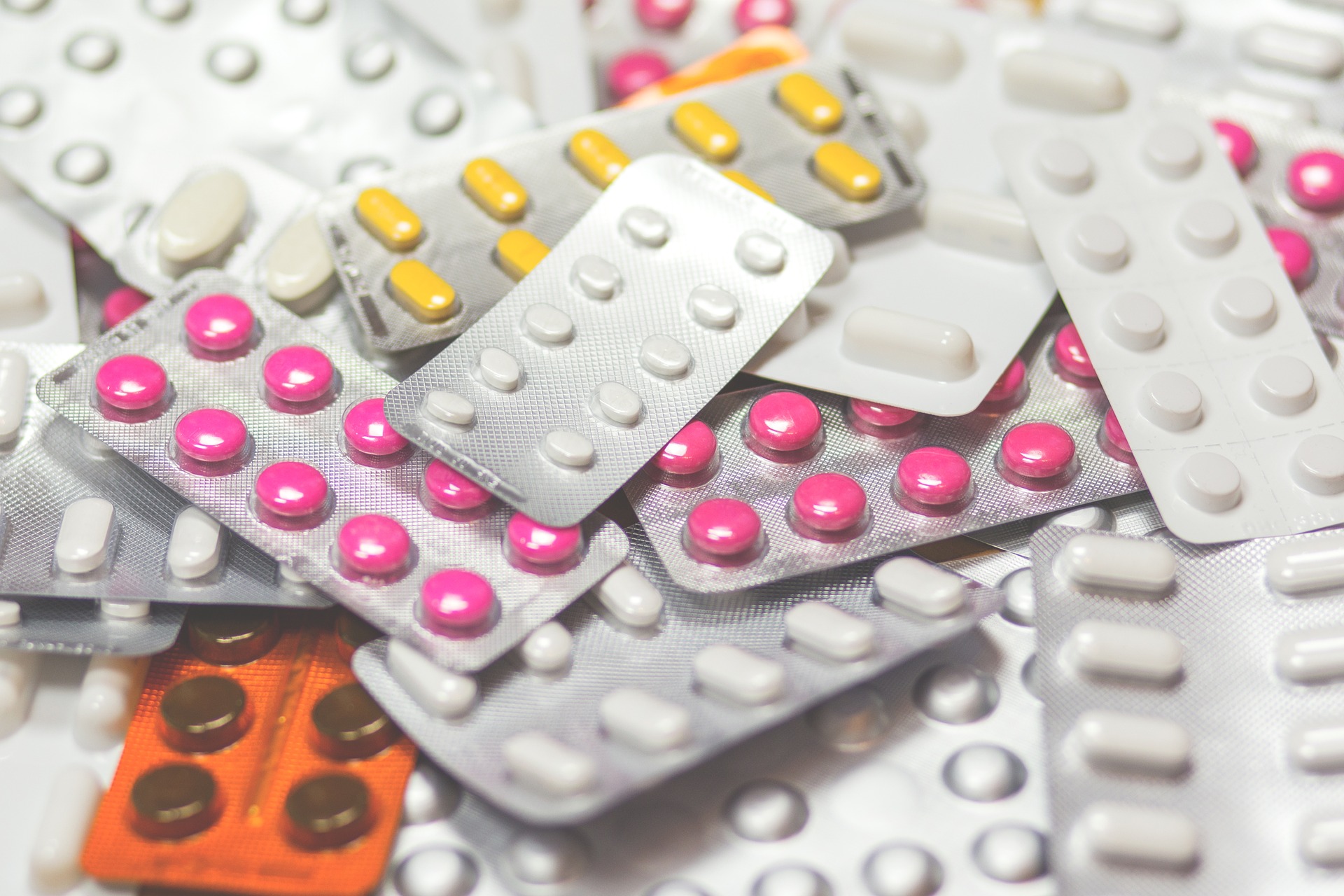

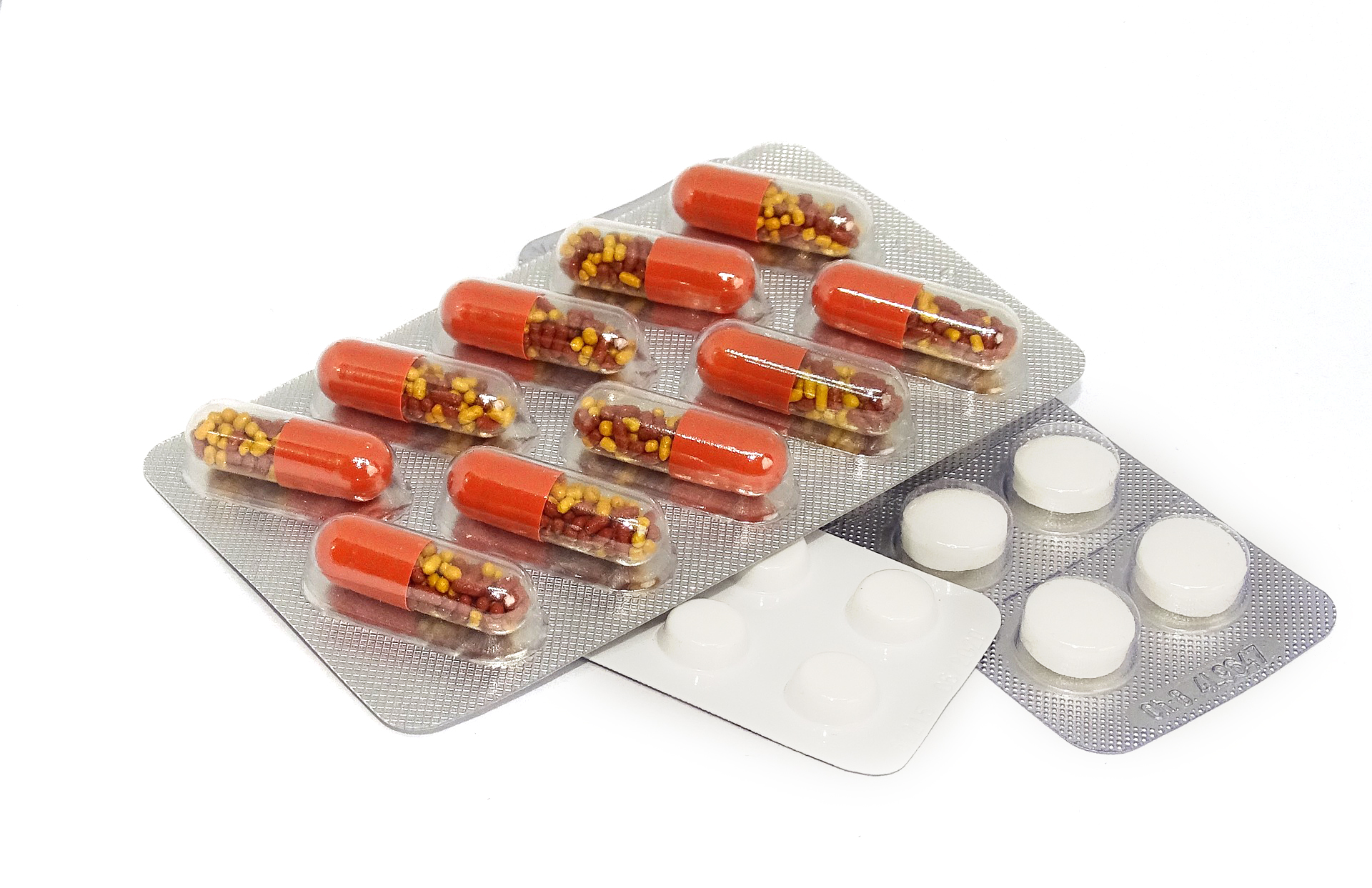

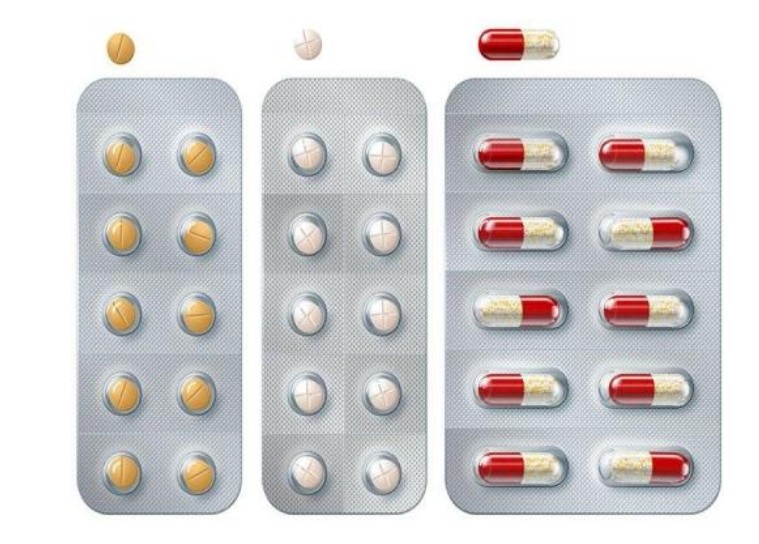

This machine is designed by requirement of "big sheet, deep bubble", it's suitable for packing capsule, tablet, penicillin bottle, oral liquid, candy and irregular shaped AL/PVC, PVC/PAPER package in medicine, food, electronic, medical instrument etc industries, also suitable for health porducts, light industries package.
Feature
u Main drive part adopts Germany imported SEWmotor, chian drive splined shaft, diameter up to 64mm, steady, large torque, longer life
u Human Interface Operate, PLC control, stepless frequency speed regulation
u Servo motor ddragging, adjustable stroke within 40-200mm
u Adopt Photocell Device, make blister sheet more beautiful
u PVC and Alu foil transportation adopt sensor switch control, motor transport, synchronization accuracy, Meterial convey steady
u Adopt Separate structure, easy to enter into clean workshop or through good ladder to enter into building workshop
u Different feeder type as perdifferent products
Main technical parameter
u Cutting speed :6-50times/min
u Power(3 phase 4 wires):380V/50Hz
u Adjustable stroke:40-200mm
u Max.forming area:340*190mm
u Max.forming depth:AL/PVC 26mm
u Forming upper heat power:2.5Kw
u Forming lowper heat power:2.5Kw
u Heat-sealing heat power:3Kw
u Motor power:2.2Kw
u Air pump pressure:0.5-0.6MPa
u Air pump volume Flux:≥0.36m3/min
u Packing Material:Medical PVC:0.26-0.40*360mm
Heat-sealing PTP:0.02*360mm
u Machine overall size:3700*600*1650mm
u Machine Weight:2000kg
