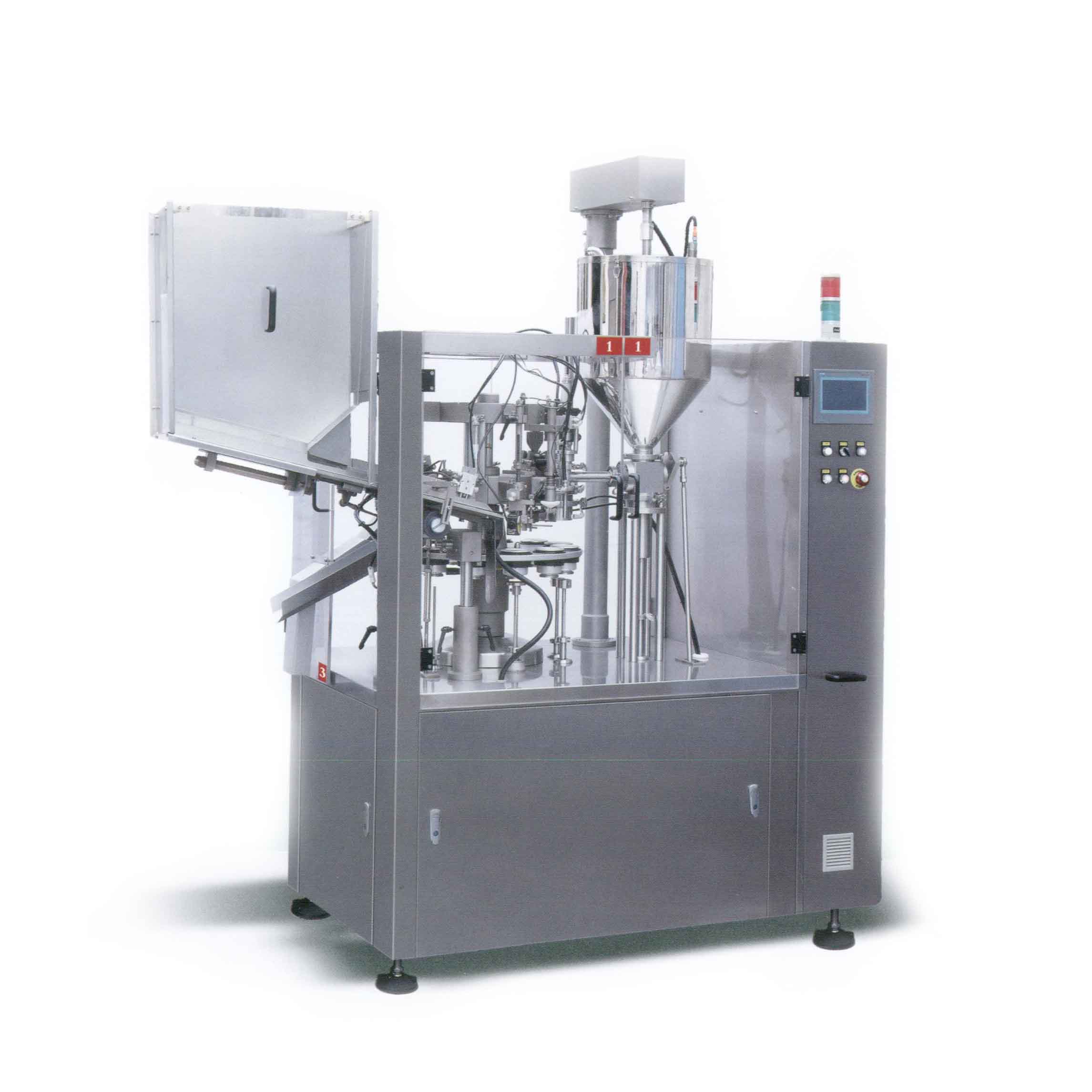

Home » Products » Liquid Filler » NF-60Z/60A/80A Automatic Filling and Sealing Machine
Feature

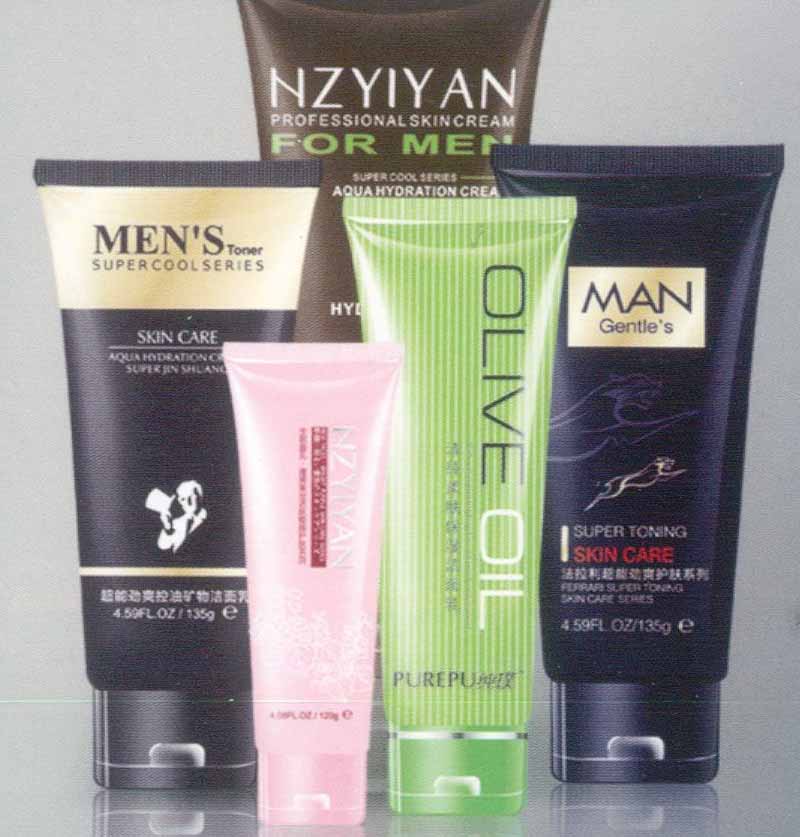

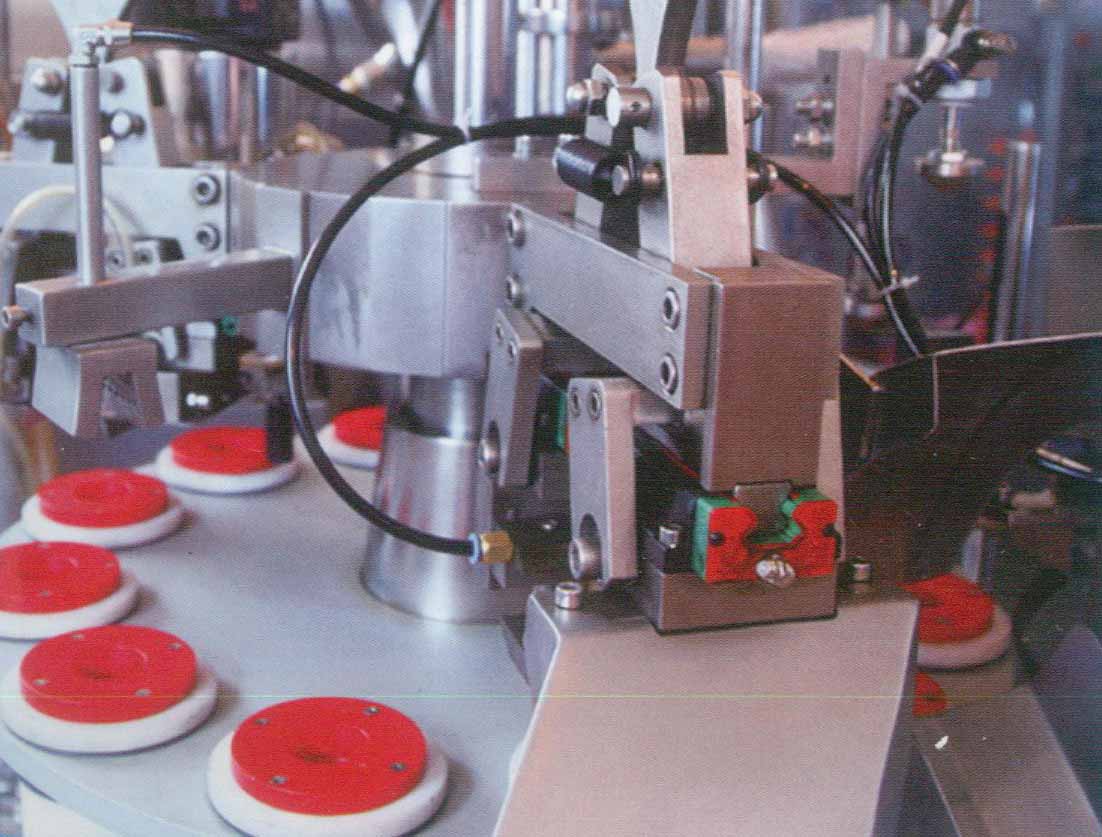

u With 12 working stations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of plumbum tube, ALU tube, plastic tube and laminated tubes. It is a multi-purpose machine.
|
Model |
NF-60Z |
NF-60A |
NF-80A |
|
Filling Speed |
60 pcs/m |
60pcs/m |
80pcs/m |
|
Filling Range |
5-180ml/pcs |
5-240ml/pcs |
5-300ml/pcs |
|
Filling Accuracy |
≤±1% |
≤±1% |
≤±1% |
|
Diameter of Soft Tube |
Φ10-φ35mm |
Φ10-φ50mm |
Φ10-φ50mm |
|
Length of Soft Tube |
50-180mm |
50-210mm |
50-210mm |
|
Tube Material |
Plastic tube, laminated tube, ALU tube and plumbum tube |
||
|
Power Supply |
380V/220V |
||
|
Working Pressure |
0.55-0.65Mpa |
||
|
Suited Motor |
1.1Kw |
1.5Kw |
|
|
Heat Seal Power |
3.0Kw |
||
|
Overall Dimension |
2000*950*1900 |
2200*1220*2400 |
|
|
Machine Weight |
850Kg |
1300Kg |
|
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
MDLP-系列高速理瓶機專業用于不同尺寸的塑料瓶理瓶，根據不同尺寸的塑料瓶子，可以通過更換模具實現。理瓶速度最快可以達到200瓶每分鐘
Learn More
This series of machines is applied for screwing spray pump onto bottle mouth in industry of pharmaceutical and cosmetic field. As for the slim and long tube of the spray pump, this machine equip manipulate guider which can lead the long tube right into bottle mouth.
Learn More

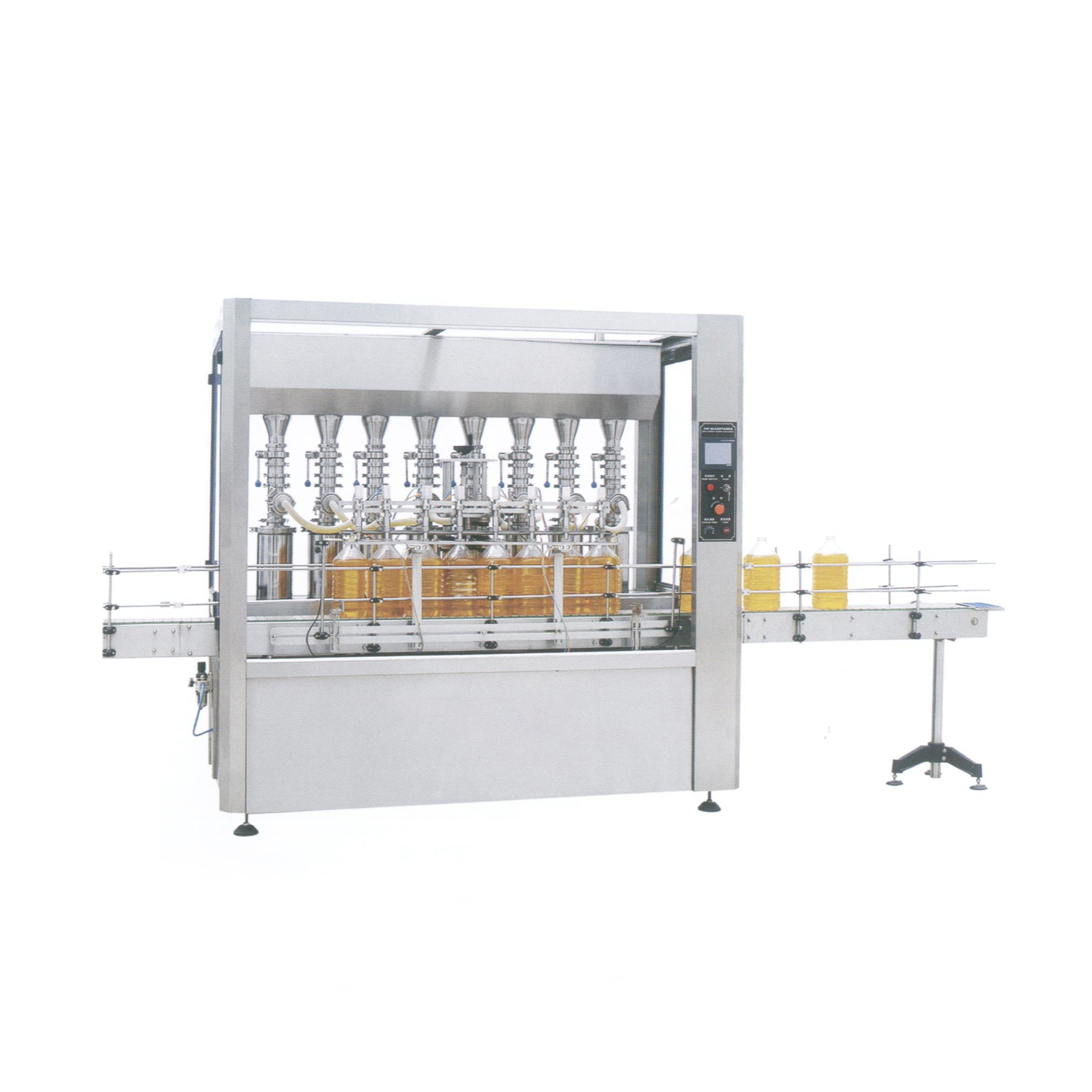

AY Automatic Oil Filling machine is applied for edible oil filling in field of foodstuff as well as similar liquid filling.
